Advanced公司有着30多年的连接器专业设计经验 , 并自家拥有多样化的生产设备及配件 , 可以创新设计高可靠的电子应用连接方案。跟竞争对手 , 与别不同。我司富经验的工程师与客户紧密联系 , 并能了解客户的应用要求 , 为客户提供专有的设计方案和高可靠性的快速样品。
生产各类插座及印刷板插针/插座,板对板连接器,IC插座和转换器,封装转换器,BGA插座:提供0.75至1.5mm间距,各种脚位均可订制
PGA插座:4至840位
PEEL-A-WAY(轻揭式):专利无座式设计, 方便安装节省空间
插针/插座:数百款标准或非标准插座
订制:插针/插座可按客户要求
* Compact, low-profile design maximizes PC board space and requires no externalhold-downs. Only 2mm larger than device package.
* Same footprint as BGA device.
* Multi-fingered, high reliability contacts and screw-machined terminals for superiorreliability.
* Available withoptional extraction slots for easy extraction of large I/O devices.
* RoHS Compliant insulators and terminals are compatible with lead-free
processing - select new lead-free solder ball terminals for SMT applications
产品资料:

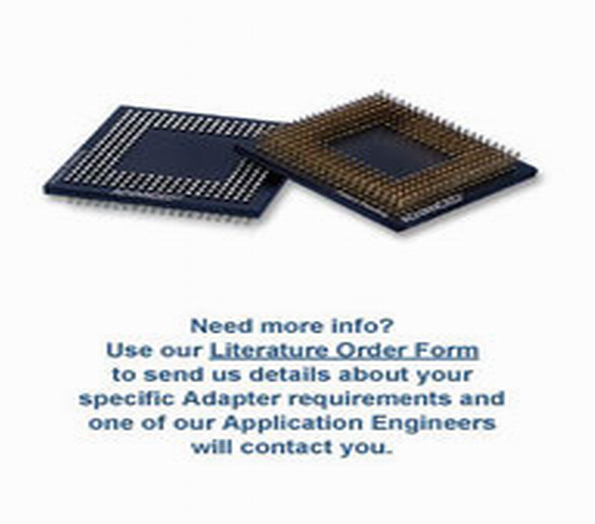

SMT适配器 - 适用於LGA及BGA器件数据表
参考连结:Contact Acceptance Range Data:
1. Device Dimension & Design Your Own Footprint Form
AIC_BGA_DesignYourOwn_16A_rev1_Fillable.pdf
2. Typical Soldering Process Examples - Tin/Lead and Lead-free Generic Reflow Profiles
AIC_BGA_SolderProfiles_16A_rev0.pdf
